Illuminating, intuitive, comfortable: New Products 2016
Solutions brochure for presence detectors and motion detectors
On almost 80 pages, the Theben solutions brochure presents a selection of the most common applications of presence and motion detectors.
Simply well-rounded: the new presence detectors theRonda S and theRonda P with master-master parallel switching
ThebenHTS complements the proven theRonda P performance series with a simplified version for smaller offices, side rooms with incident daylight, or damp rooms. In the new generation, theRonda P presence detectors have a master-master parallel switching, which is used to set the lighting conditions in the detection area of individual devices independently, and thus individually.

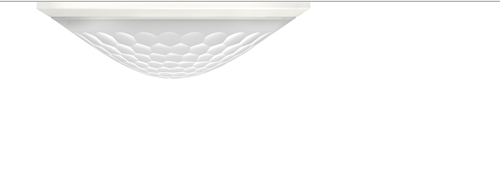

With the standard models of theRonda S, ThebenHTS complements the powerful performance series of the theRonda presence detector family for presence-dependent, energy-efficient indoor lighting and climate control with a version for medium detection areas.
theRonda S highlights at a glance:
- Circular detection area of 360掳 and max. 9 m
- Minimum standby consumption of less than 0.5 Watt
- Available as surface mounted version, or for ceiling installation with spring clamping
- Permanent light measurement for adequately switching the lighting on and off
- Teach-in function for easy setting of switch-on values
- Test function for checking the correct setting of the detection area even in daylight
- Pulse function for easy integration of the presence detectors into existing electrical installations with staircase light timer switches or KNX binary inputs, without the need for expensive adjustments
- Convenient setting via remote control
- Protection rating IP 54
To the products:
- theRonda S360-100 AP WH (1 channel light, white)
- theRonda S360-100 AP GR (1 channel light, grey)
- theRonda S360-101 AP WH (1 channel light, 1 channel presence, white)
- theRonda S360-101 AP GR (1 channel light, 1 channel presence, grey)

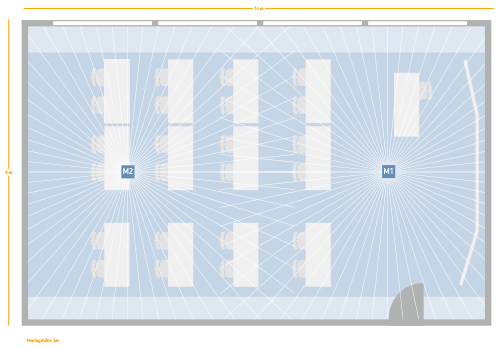

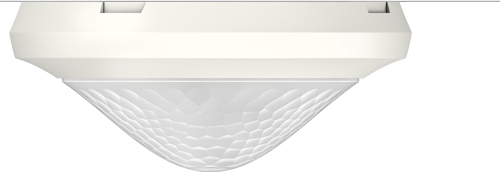

theRonda P now also with intelligent master-master parallel switching
The already large 360掳 detection area of max. 24 m now allows more than the extension via master-slave switching. Via the new master-master parallel switching, the lighting conditions can be set in the detection area of different devices independently. Perfect for instance in open-plan offices where different lighting conditions are to be balanced between areas close to windows and the room's interior.
