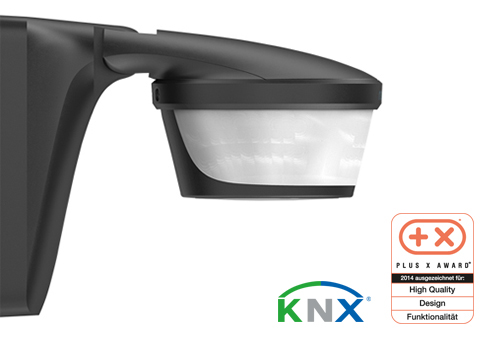

theLuxa P300 KNX motion detector 鈥 an all-rounder with inner values for outdoors
With the theLuxa P300 KNX, Theben presents a true all-rounder among the KNX motion detectors for outdoors (IP 55): With 4 channels each for motion and 4 channels for temperature and light, the KNX motion detector offers highest flexibility. Furthermore, theLuxa P300 KNX offers logic functions and a simple week timer.
The advantages of theLuxa P300 KNX motion detector
-
Comprehensive motion channels
The four motion detector channels can be linked in a time-dependent manner for various lighting applications, such as switching or dimming, for instance as an orientation light. Functions, such as short-time presence, master/slave, fully automatic/semi-automatic device and two switchable time delays can be configured via the ETS. -
Flexible universal channels
The four universal channels respond, independent of movement, on temperature and/or brightness, and can thus also be used as a twilight switch. -
Independent logic channels
The 鈥濧ND鈥, 鈥濷R鈥, and 鈥瀀OR鈥 operations of the four independent logic channels respond to current bus events in the entire KNX system. As initial object, switch commands or percentage values can be sent, for example. -
Various scene functions
theLuxa P300 KNX can enhance any scene. The motion channel can be incorporated into scenes in a most versatile way: 鈥瀕ocking鈥, 鈥瀙ermanent ON鈥, 鈥瀊rightness threshold鈥, and 鈥瀋hange over time delay鈥. -
Precise time switch function
Functions, such as 鈥瀕ocking鈥, 鈥瀙ermanent ON鈥, 鈥瀊rightness threshold鈥, and 鈥瀋hange over time delay鈥 can be called in a time-dependent manner via the integrated time switch function with a simple weekly program. -
Integrated temperature measurement
The KNX motion detector has an integrated temperature sensor, which can be used for temperature-dependent operations.
-
Sensitive brightness sensor
The motion detector has an integrated brightness sensor, which can be used as a twilight switch.
-
Easy to use remote control
theLuxa P300 KNX supports remote operation. 2 scenes and numerous settings can be easily made from the ground. This is faster, shortens installation times and lowers costs. And, moreover, it is safer.
-
Large detection area
With its 300掳 detection angle, a range of up to 16 m, and the creep under protection, theLuxa P300 KNX detects everything. Protection class IP 55 makes it the ideal KNX motion detector for outdoor use. -
Horizontal or Vertical mounting
Thanks to its pivoting sensor head, theLuxa P300 KNX is also suited for horizontal installations. The motion detector also includes accessories (corner bracket, spacer frame) and is available in white and in black.
Further information:
theLuxa P300 KNX WH (white KNX motion detector)
theLuxa P300 KNX BK (black KNX motion detector)
Further details on the included accessories:
Spacer frame theLuxa P WH (white)
Spacer frame theLuxa P BK (black)
Corner bracket theLuxa P WH (white)
Corner bracket theLuxa P BK (black)
Optional theSenda remote controls:
User remote control theSenda S
Service remote control theSenda P
