Field-dependent lighting for sport halls

Field-dependent lighting for sport halls

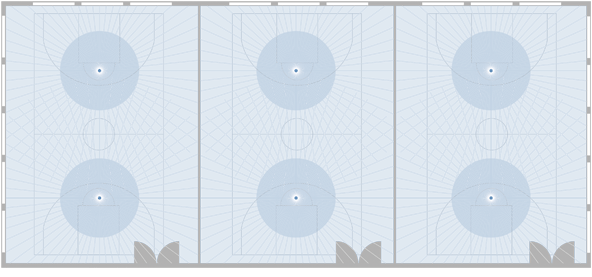

When entering the field in a sports hall, the light should go on automatically. Each of the three fields should be switched independently. One field is 21 metres wide and 30 metres long. The sports hall has large window fronts with incident daylight.

graphics1



We recommend theRonda P:

  • Detects motion even from great heightsof up to 10 m
  • Only two detectors per field required thanks to the large detection area of up to 脴 24 m
  • With theRonda P KNX, constant lighting control with optimum utilization of daylight is also possible
  • Technical data  theRonda P





graphics1

Alternative:

thePrema P if Master/Slave or Master/ Master switching is required



graphics1

Safety cover as accessory:

In order to protect the presence detector against balls, we offer safety covers (optional accessories).
