PresenceLight 180 PLLON WH

Description

Passive infrared presence detector for wall mounting

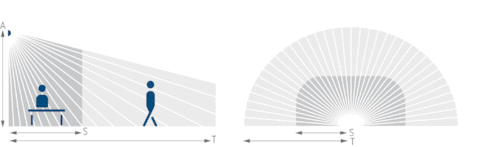

Detection area 180掳 (up to 100 m²)
Automatic presence- and brightness-dependent control for lighting and HVAC
Mixed light measurement suitable for fluorescent lamps (FL/PL/ESL), halogen/incandescent lamps and LEDs
2 independent constant light controllers #3050 for controlling two light groups
Switching or constant light control with standby function
Fully or semi-automatic function mode
3 x occupancy controller #3071
for controlling the constant light controller or use as presence channels
Light sensor #1010
Occupancy sensor #1060
Plug-in for convenient adjustment of parameters and functionality
Brightness set point value can be set via network variables
Scene Panel #3250 can be used with the theSenda S user remote control
Integrated scene module (Scene controller #3251)
Parallel switching of multiple presence detectors without logic modules
Adjustable sensitivity
Can be configured remotely
SendoPro management remote control (optional)
theSenda S user remote control (optional)
LONMARK certified

Topology	LON FTT
Operating voltage	24 V AC/DC \| AC +10%/-20% \| DC 卤20%
Recommended installation height	1,7聽鈥撀�2,2 m
Minimum height	1,7 m
Installation type	Flush/surface wall mounting
Power consumption	~30 mA
Light measurement	Mixed light measurement
Setting range brightness	5聽鈥撀�2000 lx
Switch-off delay聽	10 s 鈥� 100 min
Lamps	Incandescent/halogen lamps, fluorescent lamps, Energy saving lamps, LEDs
Switch-on delay presence	10 s聽鈥撀�30 min / inactive
Type of connection	Spring terminals WAGO 243
Ambient temperature	-10 掳C聽鈥β�+50 掳C
Type of protection	IP 40 (when fitted)
