PresenceLight 360 PLLON WH

Description

  • Passive infrared presence detector for flush/surface mounting
  • Square detection area 360掳 (up to 64 m2) for accurate and easy planning
  • Automatic presence- and brightness-dependent control for lighting and HVAC
  • Mixed light measurement suitable for fluorescent lamps (FL/PL/ESL), halogen/incandescent lamps and LEDs
  • 2 independent constant light controllers #3050 for controlling two light groups
  • Switching or constant light control with standby function
  • Fully or semi-automatic function mode
  • 3 x occupancy controller #3071
  • for controlling the constant light controller or use as presence channels
  • Light sensor #1010
  • Occupancy sensor #1060
  • Plug-in for convenient adjustment of parameters and functionality
  • Brightness set point value can be set via network variables
  • Scene Panel #3250 can be used with the theSenda S user remote control
  • Integrated scene module (Scene controller #3251)
  • Parallel switching of multiple presence detectors without logic modules
  • Adjustable sensitivity
  • Can be configured remotely
  • SendoPro management remote control (optional)
  • theSenda S user remote control (optional)
  • LONMARK certified

Technical data

Topology LON FTT
Operating voltage 24 V AC/DC | AC +10%/-20% | DC 卤20%
Recommended installation height 2聽鈥撀3 m
Minimum height 1,7 m
Installation type Flush/surface ceiling mounting
Power consumption ~30 mA
Light measurement Mixed light measurement
Setting range brightness 5聽鈥撀2000 lx
Switch-off delay聽 10 s 鈥 100 min
Lamps Incandescent/halogen lamps, fluorescent lamps, Energy saving lamps, LEDs
Switch-on delay presence 10 s聽鈥撀30 min / inactive
Type of connection Spring terminals WAGO 243
Ambient temperature -10 掳C聽鈥β+50 掳C
Type of protection IP 40 (when fitted)

Scale drawings

PresenceLight 360 PLLON WH

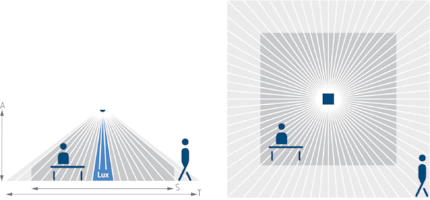

Detection range

Mounting height (A) Sitting (S) Walking (T)
2 m 9 m虏 | 3 m x 3 m 20 m虏 | 4,5 m x 4,5 m 卤 0,5 m
2,5 m 16 m虏 | 4 m x 4 m 36 m虏 | 6 m x 6 m 卤 0,5 m
3 m 20 m虏 | 4,5 m x 4,5 m 49 m虏 | 7 m x 7 m 卤 1 m
3,5 m 64 m虏 | 8 m x 8 m 卤 1 m
PresenceLight 360 PLLON WH

Accessories

Article number Data sheet Documents basket
Surface frame PresenceLight - Presence detector surface frame

Surface frame PresenceLight

9070513
more
SendoPro 868-A - Infrared remote control for the convenient startup of HTS presence detectors

SendoPro 868-A

9070675
more
theSenda S - User remote control

theSenda S

9070911
more
Ceiling installation box 73A - Ceiling installation unit for thePrema, theRonda, theMova P, PresenceLight 360, compact office,
                                 compact passage and compact passimo

Ceiling installation box 73A

9070917
more
QuickSafe - QuickSafe safety cover

QuickSafe

9070531
more

Downloads

Format Download
Tender texts DOC
Manual PDF
Software ZIP
References PDF

Variants

Article number Data sheet Documents basket
PresenceLight 360 PLLON BK - Passive infrared presence detector for flush/surface mounting

PresenceLight 360 PLLON BK

2009101
more
PresenceLight 360 PLLON SR - Passive infrared presence detector for flush/surface mounting

PresenceLight 360 PLLON SR

2009102
more
PresenceLight 360 PLLON WH - Passive infrared presence detector for flush/surface mounting

PresenceLight 360 PLLON WH

  • White
Article number 2009100
