LUXOR 400

Description

  • 4-channel base device for lighting control
  • Selector switch for configuring central functions
  • Inputs U1 and I4 floating
  • Modular expandable system with central functions
  • For switching electrical consumers
  • Manual switch on device
  • LEDs to display
  • 2 time functions (staircase light function with switch-off warning, lag function)
  • Upgradeable for up to 16 LUXOR modules
  • Central ON/OFF, panic function and presence simulation
  • LUXOR modules are connected via 2-wire bus cable (COM bus)
  • Max. input cable length up to 100 m
  • Input separate for connecting FI (RCD)
  • Universal voltage input: 8鈥48 V AC/DC (e. g. for intercoms)
  • Control for configuring central functions

Technical data

Operating voltage 230 V AC
Frequency 50 Hz
Width 4 modules
Installation type DIN rail
Stand-by consumption ~1,7 W
Capacity loss max. 2,8 W
Number of channels 4
Type of contact NO contact
Connecting cable 230 V phase-independent supply cable, max. cable length 100 m
Connection for COM EIB/KNX bus line type聽YCYM or Y(ST)Y or communication line J-Y(ST)Y/length up to 100 m
Switching capacity

16 A (at 250 V AC, cos 蠁 = 1), 6 A (at 250 V AC, cos 蠁 = 0.6)

Suitable for SELV No
Ambient temperature -10 掳C聽鈥β+50 掳C
Type of protection IP 20
Protection class II according to EN 60 730-1

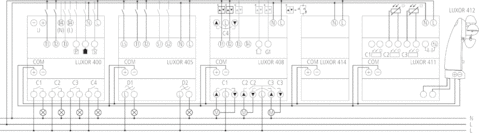

Connection example

LUXOR 400

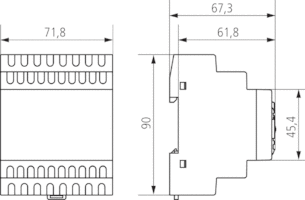

Scale drawings

LUXOR 400
