LUXA 101-150 black

Description

  • Motion detector (PIR)
  • Automatic lighting control based on presence and brightness
  • 150掳 detection angle
  • For outdoor use
  • Additional creep under protection
  • Sensor head can be turned by 卤 90掳 horizontally and by 40掳 downwards
  • Mixed light measurement suitable for the control of fluorescent, incandescent and halogen lamps
  • Single-handed plug-in installation with retained screws
  • Instant start-up possible via factory preset
  • Adjustable brightness switching value and switch-off delay
  • Sensitivity can be reduced to limit detection area
  • Controls are place protected

Technical data

Operating voltage 230 V AC
Frequency 50聽鈥撀60 Hz
Stand-by consumption ~0,9 W
Light measurement Mixed light measurement
Number of channels 1
Type of contact NO contact
Installation type Wall installation
Setting range brightness 5聽鈥撀1000 lx
Switching capacity light

10 A (at 230 V AC, cos 蠁 = 1), 6 A (at 230 V AC, cos 蠁 = 0.6), 3 AX (at 230 V AC, cos 蠁 = 0.3)

Detection angle 150掳
Recommended installation height 2聽鈥撀4 m
Switching output Potential-free
Light switch-off delay聽 5 s-12 min
Incandescent lamp load 1000 W
Fluorescent lamp load (conventional) not corrected 900 VA
Fluorescent lamp load (conventional) parallel-corrected 200 VA 18 碌F
Fluorescent lamp load (conventional) series-corrected 900 VA
Fluorescent lamp load (conventional) lead-lag circuit 400 VA
Fluorescent lamp load (electronic ballast) 400 VA
Lamps Incandescent/halogen lamps, fluorescent lamps, Energy saving lamps, LEDs
Ambient temperature -25 掳C聽鈥β+45 掳C
Protection class II
Type of protection IP 54

Connection example

LUXA 101-150 black
LUXA 101-150 black
LUXA 101-150 black

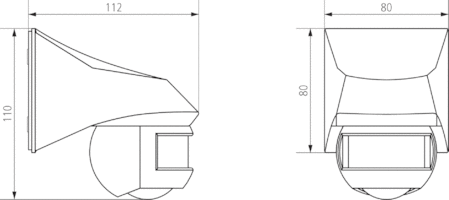

Scale drawings

LUXA 101-150 black

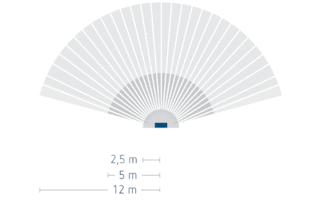

Detection range

Mounting height (A) Head on to (r) Diagonally (t)
2,5 m 5 m 12 m
