theLuxa S150 WH

Description

Motion detector (PIR)
Automatic lighting control based on presence and brightness

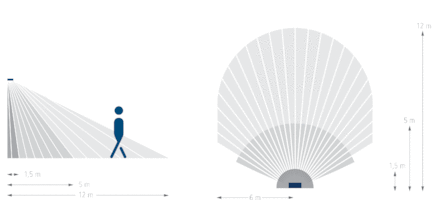

150掳 detection angle
For outdoor use
Additional creep under protection
Sensor head can be turned by 卤 90掳 horizontally and by 30掳 downwards
Adjustable brightness switching value and switch-off delay
Mixed light measurement suitable for the control of fluorescent, incandescent, halogen lamps and LEDs
Zero-cross switching for relay-saving switching and high lamp loads
Teach-in of current brightness value possible
Pulse function
Test function for checking detection area
Installation on flush-mounted socket possible (60 mm)
Single-handed plug-in installation
Instant start-up possible via factory preset
Controls are place protected
Terminal for protective earth conductor

Operating voltage	230 V AC
Frequency	50 Hz
Stand-by consumption	~0,9 W
Light measurement	Mixed light measurement
Number of channels	1
Installation type	Wall installation
Setting range brightness	5聽鈥撀�1000 lx
Switching capacity light	10 A (at 230 V AC, cos 蠁 = 1), 6 A (at 230 V AC, cos 蠁 = 0.6), 3 AX (at 230 V AC, cos 蠁 = 0.3)
Detection angle	150掳
Recommended installation height	2聽鈥撀�4 m
Light switch-off delay聽	1 s-20 min
Incandescent lamp load	2300 W
Fluorescent lamp load (conventional) not corrected	400 VA
Fluorescent lamp load (conventional) parallel-corrected	400 VA 42 碌F
Fluorescent lamp load (conventional) series-corrected	400 VA
Fluorescent lamp load (electronic ballast)	600 W
Energy saving lamps	150 W
LED lamp	< 2 W = 25 W or > 2 W < 8 W = 90 W or > 8 W = 100 W
Lamps	Incandescent/halogen lamps, fluorescent lamps, Energy saving lamps, LEDs
Ambient temperature	-25 掳C聽鈥β�+45 掳C
Protection class	II
Type of protection	IP 55
