theLuxa S360 BK

Description

  • Motion detector (PIR)
  • Automatic lighting control based on presence and brightness
  • For outdoor use
  • For installation on walls and ceilings
  • 360掳 detection angle
  • Sensor head can be turned by 卤 90掳 horizontally, by 45掳 downwards and by 90掳 upwards
  • Adjustable brightness switching value and switch-off delay
  • Sensitivity can be reduced to limit detection area
  • Area limit via lens attachment
  • Mixed light measurement suitable for the control of fluorescent, incandescent, halogen lamps and LEDs
  • Zero-cross switching for relay-saving switching and high lamp loads
  • Teach-in of current brightness value possible
  • Pulse function
  • Test function for checking detection area
  • Installation on flush-mounted socket possible (60 mm)
  • Single-handed plug-in installation
  • Instant start-up possible via factory preset
  • Controls are place protected
  • Terminal for protective earth conductor

Technical data

Operating voltage 230 V AC
Frequency 50 Hz
Stand-by consumption ~0,5 W
Light measurement Mixed light measurement
Number of channels 1
Installation type Wall and ceiling installation
Setting range brightness 5聽鈥撀1000 lx
Switching capacity light

10 A (at 230 V AC, cos 蠁 = 1), 6 A (at 230 V AC, cos 蠁 = 0.6), 3 AX (at 230 V AC, cos 蠁 = 0.3)

Detection angle 360掳
Recommended installation height 2聽鈥撀4 m
Light switch-off delay聽 1 s-20 min
Incandescent lamp load 2300 W
Fluorescent lamp load (conventional) not corrected 400 VA
Fluorescent lamp load (conventional) parallel-corrected 400 VA 42 碌F
Fluorescent lamp load (conventional) series-corrected 400 VA
Fluorescent lamp load (electronic ballast) 600 W
Energy saving lamps 150 W
LED lamp < 2 W = 25 W or > 2 W < 8 W = 90 W or > 8 W = 100 W
Lamps Incandescent/halogen lamps, fluorescent lamps, Energy saving lamps, LEDs
Ambient temperature -25 掳C聽鈥β+45 掳C
Protection class II
Type of protection IP 55

Connection example

theLuxa S360 BK

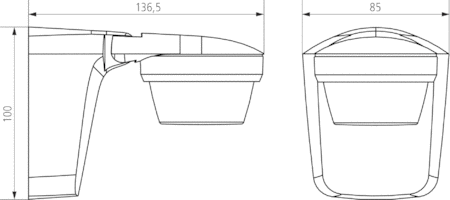

Scale drawings

theLuxa S360 BK

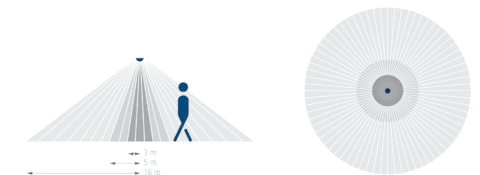

Detection range

Mounting height (A) Head on to (r) Diagonally (t)
2 m 4 m 15 m
2,5 m 5 m 16 m
3 m 5 m 16 m
3,5 m 5 m 10 m
4 m 3 m 8 m
