compact office DALI WH
compact office DALI WH
- Description
- Technical data
- Detection range

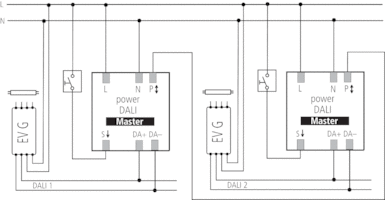

- Connection example
- Scale drawings
- Accessories
- Downloads
- Variants
Description
- Passive infrared presence detector for ceiling mounting
- Square 360掳 detection range for an accurate and simple planning
- DALI interface in accordance with EN 62386 for max. 25 DALI electronic ballasts
- Automatic allocation of DALI participants (DALI Broadcast)
- Automatic lighting regulation with constant light control
- Mixed light measurement suitable for switching fluorescent lamps (FL/PL), halogen and incandescent lamps as well as LEDs
- Facility to connect a push button for manual dimming and switching (single-button control)
- Fully or semi-automatic operation switch-selectable
- Brightness switching level, self-learning switch-off delay time, stand-by time and stand-by brightness can be adjusted
- Scene component with two built-in scenes
- Ready for immediate use due to factory preset
- Test mode for checking function and detection area
- Extension of detection area via Master/Slave or Master/Master switching, a maximum of 10 detectors can be switched at the same time
- Ceiling installation in flush-mounted socket
- Ceiling installation possible with surface-mounted frame
- User remote control theSenda S (option)
- Service remote control SendoPro (option)
Technical data
Operating voltage | 230 V AC +10 % / -15 % |
Frequency | 50 Hz |
Recommended installation height | 2聽鈥撀3 m |
Installation type | Ceiling installation |
Power consumption | 0,5 W |
Light measurement | Mixed light measurement |
Setting range brightness | 5聽鈥撀2000 lx |
Light switch-off delay聽 | 10 s 鈥 60 min |
Stand-by time light | 0 s聽鈥撀60 min / on |
Stand-by brightness | 1聽鈥撀25 % |
Lamps | Incandescent/halogen lamps, fluorescent lamps, Energy saving lamps, LEDs |
Control output | 50 mA |
Ouput light | DALI-interface according to IEC SN EN 62 386 for max. 25 DALI devices |
Type of connection | Screw terminals |
Max. cable cross section | 2 x 2,5 mm虏 |
Mounting plate | 70 x 70 mm |
Size of concealed housing | 脴 55 mm (NIS, PMI) |
Ambient temperature | +0 掳C聽鈥β+50 掳C |
Type of protection | IP 40 (when fitted) |
Detection range
Mounting height (A) | Sitting (S) | Walking (T) |
---|---|---|
2 m | 9 m虏 | 3 m x 3 m | 20 m虏 | 4,5 m x 4,5 m 卤 0,5 m |
2,5 m | 16 m虏 | 4 m x 4 m | 36 m虏 | 6 m x 6 m 卤 0,5 m |
3 m | 20 m虏 | 4,5 m x 4,5 m | 49 m虏 | 7 m x 7 m 卤 1 m |
3,5 m | 鈥 | 64 m虏 | 8 m x 8 m 卤 1 m |
