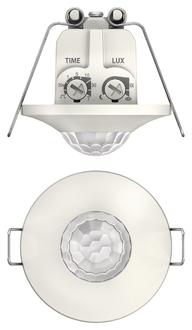

thePiccola P360-100 DE WH
thePiccola P360-100 DE WH
Description
- *Available from April 2016*
- Passive infra-red presence detector for ceiling installation
- Circular detection area 360掳, up to 脴 8 m (50 m2)
- Automatic motion and brightness-dependent control for lighting
- Mixed light measurement suitable for fluorescent lamps (FL/PL/ESL), halogen/incandescent lamps and LEDs
- Channel A light: relay, 230 V
- Operation as fully automatic device
- Brightness switching value configurable, teach-in function
- Pulse function for staircase light time switch
- Time delay configurable
- Test mode for checking function and detection area
- Connection option for sensor for manual switching
- Ready for immediate use due to factory presetting
- Remote controllable with optionally remote controls SendoPro, theSenda P and theSenda S
Technical data
Operating voltage | 110聽鈥撀240 V AC |
Frequency | 50聽鈥撀60 Hz |
Recommended installation height | 2聽鈥撀4 m |
Installation type | Ceiling installation |
Power consumption | ~0,5 W |
Light measurement | Mixed light measurement |
Setting range brightness | 5聽鈥撀1000 lx |
Light switch-off delay聽 | 30 s - 30 min |
Lamps | Incandescent/halogen lamps, fluorescent lamps, Energy saving lamps, LEDs |
Incandescent/halogen lamp load | 2000 W |
LED lamp | < 2 W = 25 W or 2-8 W = 70 W or > 8 W = 200 W |
Ambient temperature | -20 掳C聽鈥β+50 掳C |
Type of protection | IP 21 (Sensor), IP 20 (power module) |
Detection range
Mounting height (A) | Sitting (S) | Diagonally (T) | Head on to (r) |
---|---|---|---|
2,5 m | 3 m虏 | 2 m | 50 m虏 | 8 m | 3 m虏 | 2 m |
