| Operating voltage |
230 V AC |
| Frequency |
50 Hz |
| Number of channels |
1 |
| Installation type |
Plug-in |
| Type of connection |
Plug-in |
| Program |
Daily program |
| Switching capacity at 250 V AC, cos 蠁 = 1 |
16 A |
| Switching capacity at 250 V AC, cos 蠁 = 0,6 |
4 A |
| Shortest switching times |
15 min |
| Programmable every |
15 min |
| Time accuracy at 25 掳C |
Synchronised with mains |
| Type of contact |
NO contact |
| Number of switching segments |
96 |
| Stand-by consumption |
~0,9 W |
| Test approval |
VDE |
| Housing and insulation material |
High-temperature resistant, self-extinguishing thermoplastic |
| Type of protection |
IP 20 |
| Protection class |
II according to EN 60 730-1 |
| Ambient temperature |
-40 掳C聽鈥β+55 掳C |
 \n\n你要从服务器上打开它吗？'))window.location='http://www.theben.de/var/theben/storage/ilcatalogue/files/images/image.connection-diagram.lightbox_IM0000605.EPS.gif')

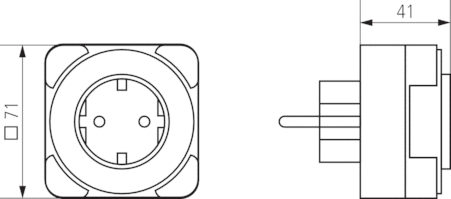

 \n\n你要从服务器上打开它吗？'))window.location='http://www.theben.de/var/theben/storage/ilcatalogue/files/images/image.dimension-diagram.lightbox_IM0001124.EPS.gif')
