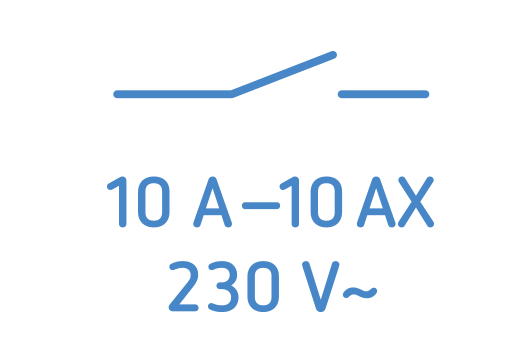

Two contacts for all switching cases: Tungsten pre-contact
High currents require special contacts. Next to silver tin oxide (AgSnO2), Theben uses a combination of two contacts that close after one-another: the tungsten pre-contact.
The leading contacts comprise high-Ohm and highly-resistant tungsten. It captures the starting current and limits it at the same time. The low-Ohm main contact remains unloaded from the switching peaks in such a manner.
Overview: switching units with tungsten pre-contact
Theben uses relays with tungsten pre-contact with many digital time switches, astronomical time switches, several motion detectors and many presence detectors.
Digital time switch with weekly program
Most digital time switches with a width of 1 TE (Does not apply: TR 608 top2 S) are equipped with a tungsten pre-contact that protects the switching relay and takes over the capacitive switching load.

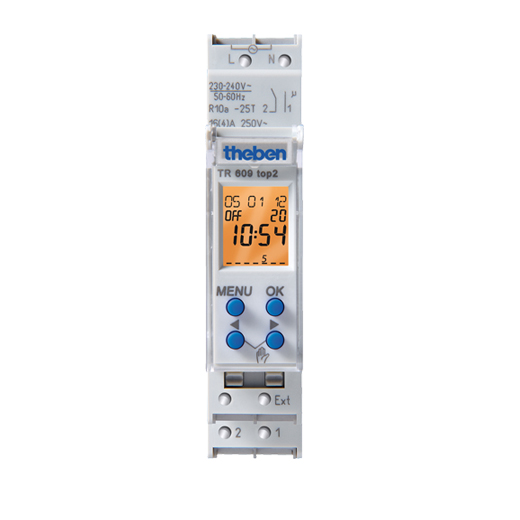

TR 609 top2 S
- Tungsten pre-contact
- LED switching capacity: < 2 W: 55 W, 2-8 W: 180 W, > 8 W: 200 W
- Max. switch-on peak. 800 A/ 200 碌s
- 1 channel
- External input (push buttons and switches)
- Holiday / random program for presence simulation
- Pulse / cycle program
- High operating accuracy thanks to integrated temperature compensation
- Further information for TR 609 top2 S
- All digital time switches from Theben
Motion detectors for outdoor use
All theLuxa P versions are equipped with a tungsten pre-contact that protects the switching relay and takes over the capacitive switching load.

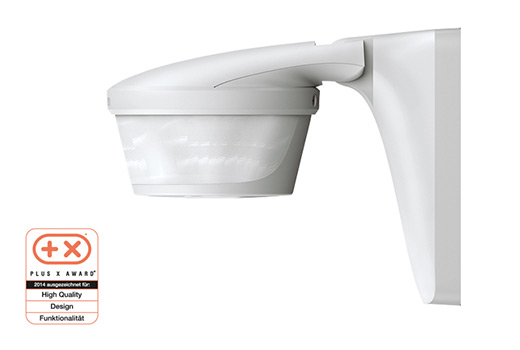

theLuxa P220/ P300
- Tungsten pre-contact
- LED switching capacity: < 2 W: 60 W, 2-8 W: 180 W, > 8 W: 200 W
- Max. switch-on peak. 800 A/ 200 碌s
- Detection angle 300掳, Creep under protection
- Detection area up to 16 m
- For wall and ceiling installation
- Blended light measurement suitable for the control of LEDs, fluorescent, incandescent and halogen lamps
- Adjustable brightness switching value and time delay
- Remote operation
- Further information for theLuxa P300 motion detector
- All motion detectors for outdoor use
Motion and presence detectors for indoor use

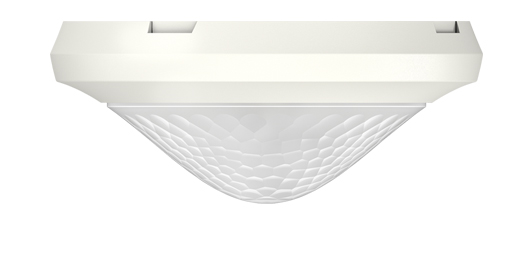

All theMova P versions and all the theRonda P versions are equipped with a tungsten pre-contact that protects the switching relay and takes over the capacitive switching load.
| theMova P360-100 UP
| theRonda P360-100/ 101
|
