Presetting for LEDs on the DIMAX plus universal dimmer from Theben.
Dimming LEDs infinitely and flicker-free > Universal dimmer DIMAX from Theben

Brochure: The best way to switch and dim LED lighting

LED-Brochure_Theben_en ( 665.77 kB )

Choose the optimum presetting for LEDs on the DIMAX plus universal dimmer from Theben

LED compatible switching devices from Theben, such as the universal dimmer DIMAX 534 plus, offer additional setting options for a perfect adaptation to this technology.

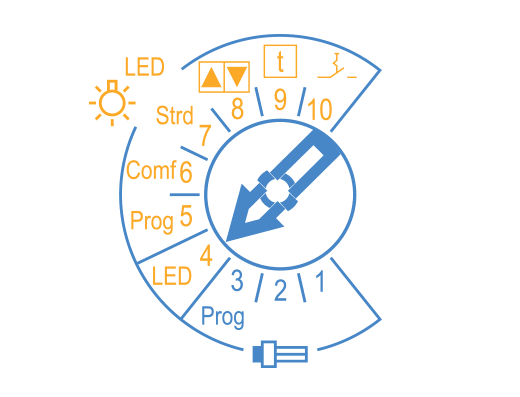

Voreinstellung beim Dimmer DIMAX 534 plus f眉r LEDs



A minimum brightness for LED lamps with low Wattage can be set using potentiometers and rotary switches. Even the type of control, phase control or phase alignment control can be selected. This practically allows all dimmable LED lamps of renowned manufacturers to be controlled reliably.



Linie

Universal dimmer actuator

All DIMAX plus versions have presets for the optimum LED control.

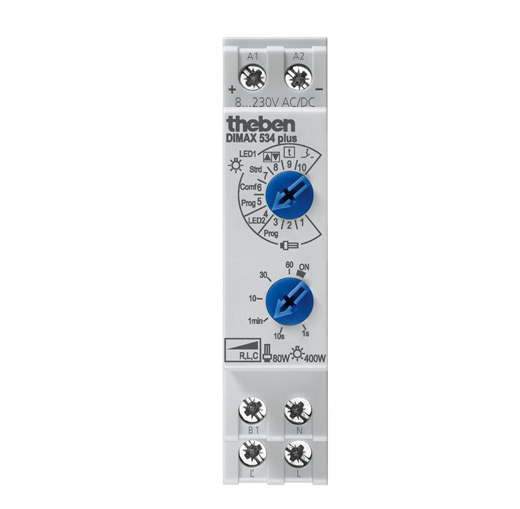

Presets f眉r LEDs am Universaldimmer DIMAX 534 plus



DIMAX 534 plus

  • Universal dimmer for R, L and C loads with automatic load recognition
  • 400 W dimming output
  • Adjustable minimum brightness (required for LEDS and ESL)
  • Use of the 1-channel dimming boosters 1 T KNX dimming booster can increase dimming output by 300 W/VA
  • Up to 3 light scenarios can be triggered over separate entries
  • Further information for the DIMAX 534 plus universal dimmer
