Illuminating, intuitive, comfortable: New Products 2016
Solutions brochure for presence detectors and motion detectors
On almost 80 pages, the Theben solutions brochure presents a selection of the most common applications of presence and motion detectors.

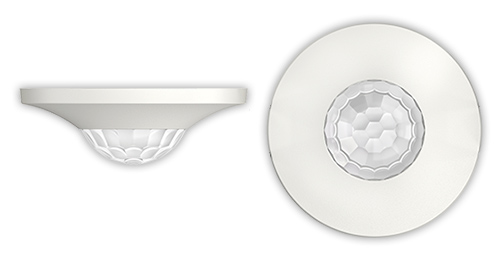

So big can be so small: The new Theben mini presence and motion detectors thePiccola
With the new thePiccola mini presence and motion detectors, Theben presents a compact series for motion and brightness dependent lighting control with medium detection areas
Thanks to their small sensor head with a detection area of 360掳 and a diameter of max. 8 m, the new thePiccola mini presence and motion detectors are perfectly suited for applications in small rooms of functional and residential buildings, such as work rooms, toilets, storage rooms or corridors. The elegant design blends thePiccola smoothly into the award-winning style of the other ThebenHTS motion and presence detectors, such as thePrema,theRonda, and theMova. High-performance relays with tungsten pre-contact allow switching of high switch-on currents with LED loads.
thePiccola highlights at a glance:
- Circular detection area of 360掳 and max. 8 m
- Adequate ceiling installation with spring clamping
- Teach-in function for easy setting of switch-on values
- Test function for checking the correct setting of the detection area (even in daylight)
-
Pulse function for easy integration of the presence detectors into existing electrical installations with staircase light timer switches or KNX binary inputs, without the need for expensive adjustments

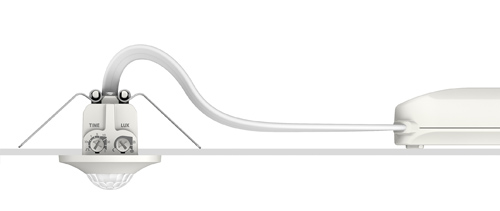

If you look behind the scenes, it becomes clear that in thePiccola the sensor head and power supply unit are going their separate ways. The result is a small sensor head with a diameter of just 45 mm. The power supply unit can be tucked away in false ceilings.
Special features of motion detector thePiccola S:
- Master/slave function for extending the detection area (motion detector)
- More about motion detector thePiccola S360-100
Special features of presence detector thePiccola P:
- Manual switching on and off of the lighting via button (presence detector)
- More about presence detector thePiccola P360-100
