Illuminating, intuitive, comfortable: New Products 2016
Solutions brochure for presence detectors and motion detectors
On almost 80 pages, the Theben solutions brochure presents a selection of the most common applications of presence and motion detectors.
Excellent design, now even more economical and flexible: the new ThebenHTS premium presence detectors thePrema E with reduced standby consumption
ThebenHTS optimises the programme of thePrema premium presence detectors. The devices have a standby consumption of less than 0.1 Watt, while thePrema S, as a DALI version, is suited for easy integration into building automation.
In the programme of thePrema E premium presence detectors, ThebenHTS is setting new accents with regard to energy efficiency and flexibility. The devices now have a standby consumption of less than 0.1 Watt, while thePrema S, as a DALI version, is suited for easy integration into building automation.
thePrema E highlights at a glance
- Minimum standby consumption of less than 0.1 Watt
- High-performance relays with tungsten pre-contact allow switching of high switch-on currents with LED loads
- Relay mode: The presence relay can be used with different operating modes. Presence channel H and light channel A can be selected, while the light relay can be deactivated if desired. This makes switching more quiet.
- Square 360掳 detection area prevents "blind spots" or overlaps in the room and reduces the number of presence detectors per area
- Teach-in function for easy setting of switch-on values
- Automatic detection of connected push buttons or switches simplifies installation and avoids setting errors
- Integrated room monitoring registers even the smallest movements in large buildings
- 鈥瀍co plus鈥 short-term presence function detects if someone is in the room only briefly and switches the light off after only two minutes
- Self-learning time delay adjusts to users' behaviour
- Adequate surface-mounting, flush-mounting, or ceiling installation
- Also available as thePrema KNX
thePrema SE standard presence detectors
- For individual offices, open-plan offices with axle design and for corridors with strong incident daylight and sophisticated light measurement
- thePrema S, as a DALI version, for easy integration into building automation
- One and two-channel presence detectors for light and presence switching, and for integration in the KNX building control (thePrema KNX)
- thePrema S360 Slave as an inexpensive presence detector for simple extension of the detection area
To the products
- thePrema S360-100 E UP WH (1 channel light, white)
- thePrema S360-100 E UP GR (1 channel light, grey)
- thePrema S360-101 E UP WH (1 channel light, 1 channel presence white)
- thePrema S360-101 E UP GR (1 channel light, 1 channel presence grey)
- thePrema S360 Slave E UP WH (slave, white)
- thePrema S360 Slave E GR WH (slave, grey)

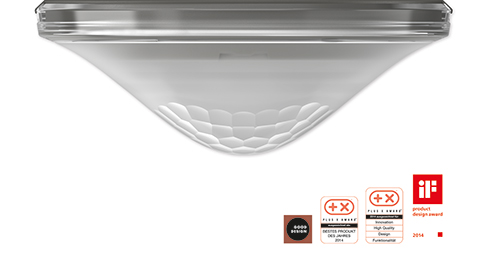

thePrema PE performance presence detectors
- For larger interior areas, such as open-plan offices, conference rooms, classrooms, as well as rooms with large installation heights, such as warehouses and sports halls
- With KNX and slave versions and even larger range of functions
- Ideally suited for large areas of up to 100 m2
- Thanks to three independent mixed light measurements, optimally suited for rooms with much daylight
To the products
- thePrema P360-101 E UP WH (1 channel light, 1 channel presence, white)
- thePrema P360-101 E UP GR (1 channel light, 1 channel presence, grey)
- thePrema P360 Slave E UP WH (slave, white)
- thePrema P360 Slave E GR WH (slave, grey)

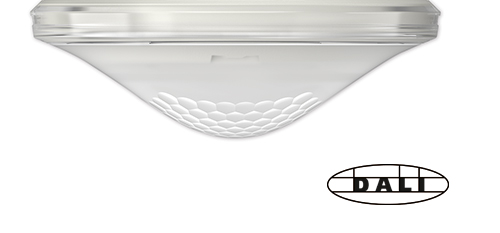

thePrema S DALI
- DALI interface for integration into building automation
