It simply makes sense: the new theMova motion detectors for indoors from ThebenHTS
With theMova product family, ThebenHTS is setting new standards for automatic, energy-efficient lighting control in indoor transit areas. The new droplet-shaped design of theMova motion detector links to the product design of thePrema and theRonda presence detectors.

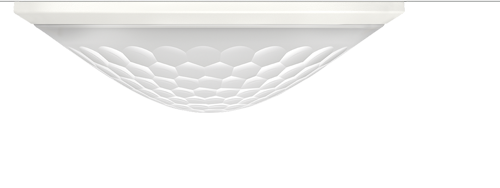

Motion detector theMova S
Here is an overview of the most important characteristics and functions:
Fields of application
- In transit areas for example in staircases, entrance halls, garages, cellars or toilets.
- Wet rooms thanks to IP 54 (surface-mount version theMova S AP)
- Integration into KNX building control (theMova P KNX)
Detection area
- theMova S: Round detection area of up to 8 m at 360掳
-
theMova P: Round detection area of up to 24 m at 360掳 at room heights of over
3.5 m, mechanical area restriction via stick-on clips
Installation
- theMova S: Ceiling installation and surface-mount version (plug-in terminals)
-
theMova P: In or on the ceiling via ceiling installation socket or socket-mount frame
Motion detector theMova P
Usage
- All devices: Convenient adjustment via theSenda remote control, teach-in function on the detector, test function, pulse function
- theMova P: Easily accessible potentiometers on the lower side of the device
Additional highlights theMova P motion detector
- High switching capacity thanks to tungsten pre-contacts to connect several lamps to a detector
- Thanks to the new switch-mode power supply, the internal consumption value of theMova motion detectors is well under 0.2 W, meaning theMova motion detectors make a considerable contribution towards saving energy.
theMova Standard product overview
- theMova S360-100 DE motion detector
- theMova S360-100 AP motion detector
- theMova S360-101 DE motion detector
- theMova S360-101 AP motion detector
- theMova S360 KNX DE motion detector
- theMova S360 KNX AP motion detector
