KNX weather station Meteodata 140 S KNX
This weather station is a true all-rounder. It is transparent, compact in design, and optimally suited for glare protection: It automatically calculates the position of the sun and the sunlight incidence angle, and it detects wind, rain, brightness, and temperature. It provides
all data necessary for the fully automatic control of blinds and sun protection of up to eight facades. Including sun position tracking.
Measurement and evaluation of the weather data take place directly in the device. To display the weather data, the VARIA 826 S KNX multifunction display is suited, for instance. The Meteodata 140 S GPS KNX is equipped with an integrated GPS receiver, a heated rain sensor, three brightness sensors, six logic channels, as well as four additional threshold value channels for linking external KNX sensors. Meteodata KNX weather stations are also available as 24 V versions with and without GPS module, as well as a "basic" version without rain sensor.
For effective glare protection with sun position tracking:
- Reliable detection of the sun position
- Precise temperature measurement
- Capacitive rain measurement
- Wind measurement independent of its direction
Callable

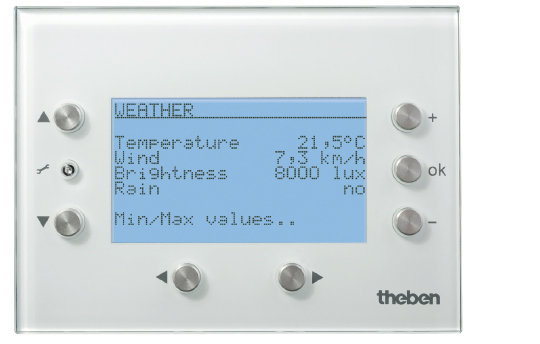

Wind, rain, temperature and sunshine can be displayed on the multifunction display VARIA 826 S KNX.
