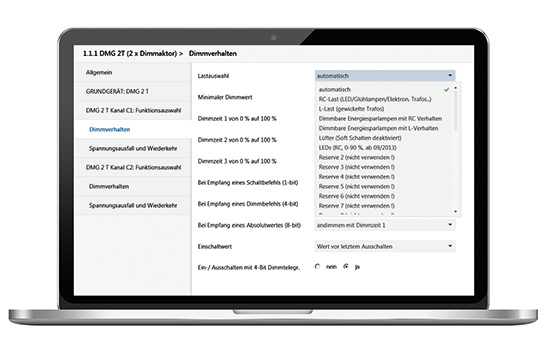

Dim LEDs harmoniously - today and in the future: update dimming curves via the ETS
Similar to conventional Dimmer DIMAX 534 plus, the KNX universal dimmer from Theben also offers different presettings in order to make an optimum approach to the lamp connected. However, the KNX universal dimmer actuator goes one step further: in the programming software ETS, various dimming curves are stored, which correct the dimming response appropriately depending on the lamp used, thus ensuring infinite transitional dimming.
Another advantage of the Theben KNX dimmer is than new dimming curves can be imported via ETS as new lighting developments come along. This ensure that your investment and the future is protected.
KNX MIX2 dimming actuator Basic and extension module:
In the KNX programming software ETS, various dimming curves are stored, which correct the dimming response appropriately depending on the lamp used, thus ensuring stepless dimming. New dimming curves 鈥 e.g. for future lamps 鈥 can be imported via ETS, thus ensuring
your investments are well-protected.

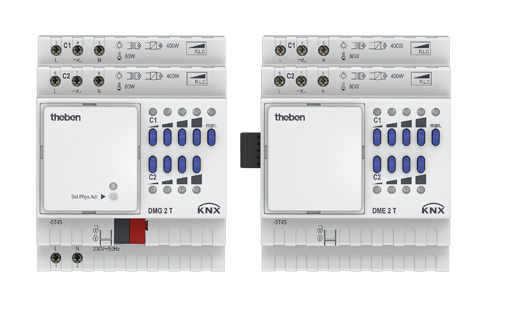

DMG 2 T KNX and DME 2 T KNX
- 2-way universal dimmer actuator MIX2, basic and extension module
- For dimming dimmable LED lamps, low voltage and high voltage halogen lamps as well as incandescent lamps
- Also suitable for dimming dimmable compact fluorescent lamps via different dimming curves
- LED switching status indicator for each channel
- Dimming output: 400 W/VA per channel or 1 x 800 W/VA in parallel operation
- Use of the 1-channel dimming boosters 1 T KNX dimming booster can increase dimming output by 300 W/VA. Output of 鈥╱p to 2000 W/VA possible via max. 4 boosters
- Automatic load detection (can be deactivated)
- For R, L and C-loads
- Dimming range 0鈥100 %
- Further information for the MIX2 dimming actuator DMG 2 T KNX (base module)
- Further information for the MIX2 dimming actuator DME 2 T KNX (extension module)

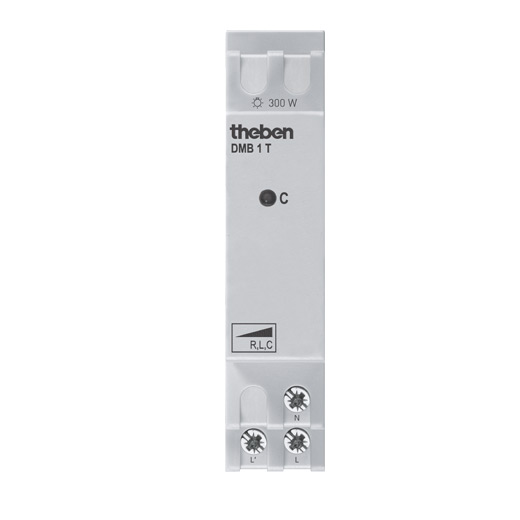

KNX dimming booster DMB 1 T KNX
- 1 channel dimming booster
- For the output extension of the basic and expansion module of the universal dimming actuators by 300 W for each channel. Output of up to 2000 W/VA possible via max. 4 boosters
- Further information for the DMB 1 T KNX dimming booster

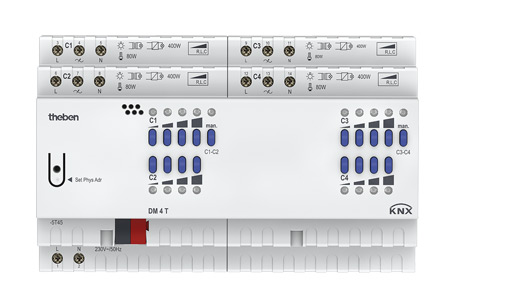

KNX FIX2 dimming actuator DM 4 T KNX
- 4 way universal dimming actuator FIX2
- For dimming dimmable LED lamps, low voltage and high voltage halogen lamps as well as incandescent lamps
- Different dimming curves
- Dimming output: 400 W/VA per channel or 1 x 800 W/VA in parallel operation
- Performance upgrade up to 2000 W/VA by max. 4 boosters possible
