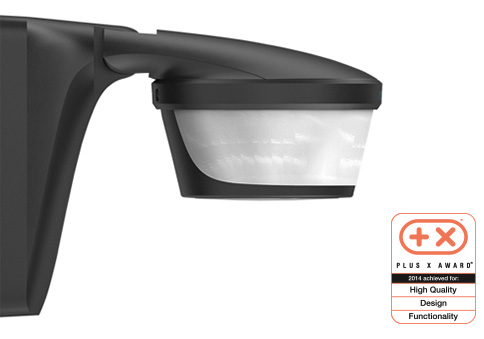

KNX motion detector for outdoor use: theLuxa P KNX

Comfort and safety – two aspects a KNX motion detector must cover. Nothing accomplishes these tasks better than theLuxa P300 KNX. Integrated in the KNX building system  technology, it exactly detects, when and who it should guide the way.

Especially in larger areas, it is about detecting and automatically responding to streams of movements which have to be expected. For instance of employees, who enter the company premises in the early morning, and often leave late in the evening. Or employees and visitors of hotels, hospitals and administrative buildings. In all these cases, it is about the required control, but also a predictive lighting of entrance halls, access routes and connecting passages.
theLuxa P300 KNX (protection class IP 55)  is available in white or black, and can be  installed at the wall or ceiling, thanks to  its swivelling sensor head. With a 300°  detection area of up to 16 m, and creep under protection, theLuxa P300 KNX does not miss anything. Via the ETS, the motion detector can be easily integrated into the building automation, and it is easy to configure. Brightness thresholds, duty cycle, and  sensitivity can easily be configured via  the KNX visualisation theServa S110 KNX.

Bewegungsmelder theLuxa P von Theben für die Wand- und Deckenmontage

More flexible: ceiling and wall mounting

Thanks to its swivelling sensor head, thLuxa P300 KNX is also suited for ceiling installation. The motion  detector and its included accessories (corner bracket, spacer frame) are available in white and in black.

Detecting everything in a wide range:

Various functions with numerous advantages


	Comprehensive motion channels The four motion detector channels can be linked in a time- dependent manner for various lighting applications, such as switching or dimming, for instance as an orientation light. Functions, such as short-time presence, master/slave, fully automatic/semi-automatic device and two switchable time delays can be configured via ETS.
	Flexible universal channels The four universal channels respond, independent of movement, to temperature and/or brightness, and can thus be used as a twilight switch, for instance.
	Independent logic channels The "AND", "OR", and "XOR" operations of the four independent logic channels respond to current bus events. As initial object, switch commands, or percentage values can be sent, for example.
	Various scene functions theLuxa P300 KNX is an enrichment to any scene. The motion channel can be incorporated into scenes in a most versatile way: "locking", "permanent ON", "brightness threshold", and "change over time delay".
	Precise time switch function Functions, such as "locking", "permanent ON", "brightness threshold", and "change over time delay" can be called up in a time-dependent manner via the integrated time switch  function with a simple weekly program.
	Integrated temperature measurement theLuxa P300 KNX has an integrated temperature sensor, which can be used for temperature-dependent operations.
	Sensitive brightness sensor The motion detector has an  integrated brightness sensor, which can be used as a twilight switch.
	Easy to use remote control theLuxa P300 KNX supports  remote operation. 2 scenes and numerous settings can be easily made from the ground. This is faster, shortens the installation time and lowers costs. And, it is safer.
	Clever teach-in function Lighting conditions change quickly - it is good if you can simply save them when they are exactly how you want them to be. With the clever teach-in function, the current lux value can be permanently saved.
