Zero-cross switching: Switching precisely at a poin

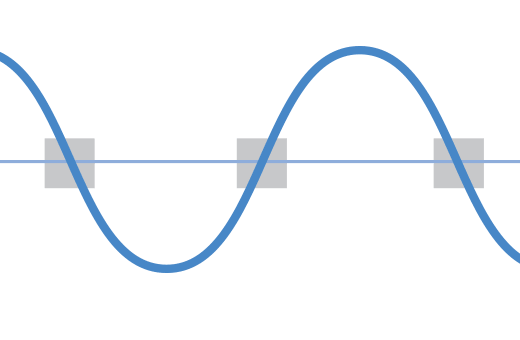

Switching devices that are designed for a C load generally deal with the switching currents in a better manner. In doing so, Theben uses a particularly efficient solution, such as a so-called zero-cross switching. This calculates the zero crossing of the sinus curve of the alternating voltage. At this moment, the switch-on current is minimum when switching. That protects the relay contact and extends its service life, even at nominally high switching loads.
Almost all of the devices of the top2 series are equipped with the motion detector theLuxa S and the presence detector PlanoCentro.
Overview: switching units with zero-cross switching
From the light bulb to the LED lamp: with features such as zero-cross switching, Theben offers compact self-sufficient devices for every application from simple time switches to astronomical time switches with weekly program.
Astronomical digital time switch with weekly program
Digital time switches from a width of 2 TE (The time switches with an operating voltage of 12鈥24 V do not have a zero-cross switching) are equipped with a zero-cross switching to avoid wear and tear of relay contact and light source, i.e. prolongs service life of light source.

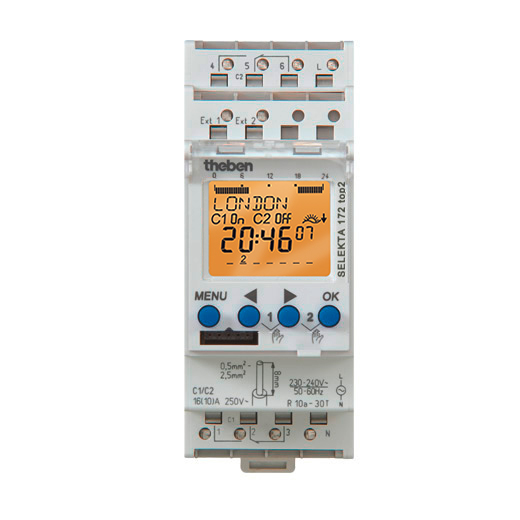

SELEKTA 172 top2
- Zero-cross switching
- LED switching capacity: < 2 W: 30 W, 2-8 W: 100 W, > 8 W: 120 W
- 2 channels
- 2 external inputs (button or switch)
- Global position input
- Offset function (+/- 120 minutes)
- 3 special programs with date function
- High operating accuracy thanks to integrated temperature compensation
- Further information for SELEKTA 172 top2
- Overview of all digital time switches
Staircase light timer switch ELPA
For more than 10 years, staircase light electronic timers from Theben have already been equipped with a zero-cross switching (Applies for: ELPA 3, ELPA 7, ELPA 8 and ELPA 9).

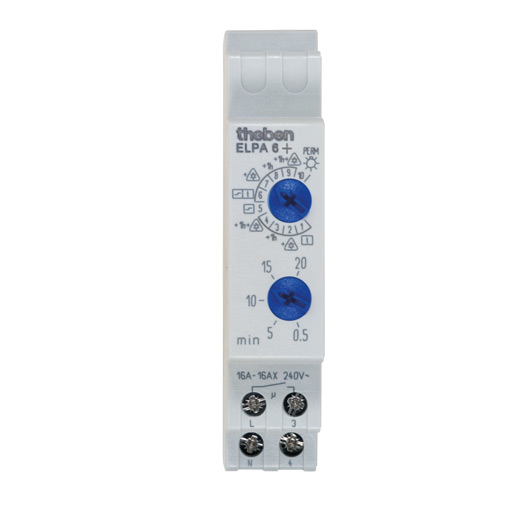

ELPA 6 plus
- Zero-cross switching
- LED switching capacity: < 2 W: 55 W, 2-8 W: 150 W, > 8 W: 180 W
- Switch-off warning optimised for LED lamps
- Multi-function device with choice of 10 functions
- Extended function activated via long button press
- Continuous light
- Push button input with electronic overload protection
- Automatic 3 or 4-way conductor detection
- Further information for ELPA 6 plus
- Overview of all staircase light timer switches
Motion Detector theLuxa S
All theLuxa S versions are equipped with a crossover switching to avoid wear and tear of relay contact and light source, i.e. prolongs service life of light source.

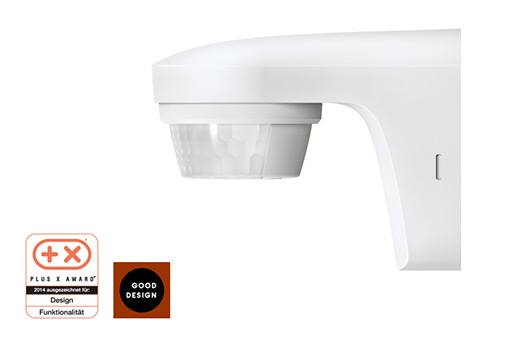

theLuxa S150/ S180
- Zero-cross switching
- LED switching capacity: < 2 W: 25 W, 2-8 W: 90 W, > 8 W: 100 W
- Detection angle 150掳, Creep under protection
- Detection area up to 12 m
- Adjustable brightness switching value and time delay
- Blended light measurement suitable for the control of LEDs, fluorescent, incandescent and halogen lamps
- Teaching in of the current brightness switching value
- Impulse, test function
- Further information for theLuxa S150/ 180 motion detector
- Overview of all motion detectors
Presence detector PlanoCentro
All PlanoCentro versions are equipped with a crossover switching to avoid wear and tear of relay contact and light source, i.e. prolongs service life of light source.

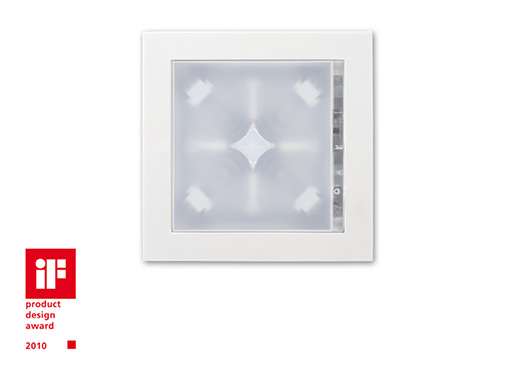

PlanoCentro 101-EWH
- Zero-cross switching
- Switching capacity: 2300 W, 1150 VA
- LED switching capacity:< 2 W: 60 W/> 2 W: 180 W
- Max. switch-on peak. 800 A/ 200 碌s
- Power consumption: 0.4 W
- Square detection area 360掳 (9 x 9 m)*
- Blended light measurement suitable for the control of LEDs, fluorescent, incandescent and halogen lamps
- Operation as fully or semi-automatic (absence detection)
- Further information for PlanoCentro 101-EWH
- Overview of all presence detectors
